Model No.: CP_RZ
Accuracy: ±1.5FS (pipe type), ±2.5FS (insert type)
Grado Sa Pagpanalipod: IP67
Signal Sa Output: 4-20mA, RS485 Modbus, HART, pulso, relay alarma
Klase Sa Proofose: Ex ia IIC T6 Gb, Ex d IIC T6 Gb
Medium Nga Range Sa Temperatura: -10 ℃ ~ 350 ℃
Ambient Temperatura Nga Sakup: -20 ℃ ~ 45 ℃
The file is encrypted. Please fill in the following information to continue accessing it
| Website Field | Recommended Content |
| Brand | CEPAI |
| Product Type | Thermal Gas Mass FlowMeter |
| Minimum Order | 1 Piece / Piece |
| Payment Type | L/C, T/T, D/P (use existing website commercial settings) |
| Transportation | Ocean, Land, Air, Express or other agreed method |
| Port | Shanghai, Ningbo or Huai'an |
| Customization | Connection, size, pressure, temperature, output and communication options available |
| Attribute | Content |

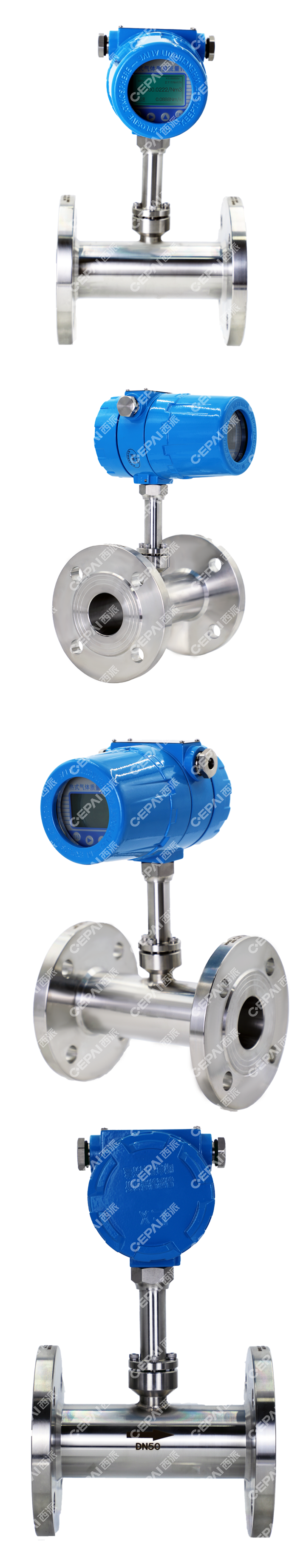

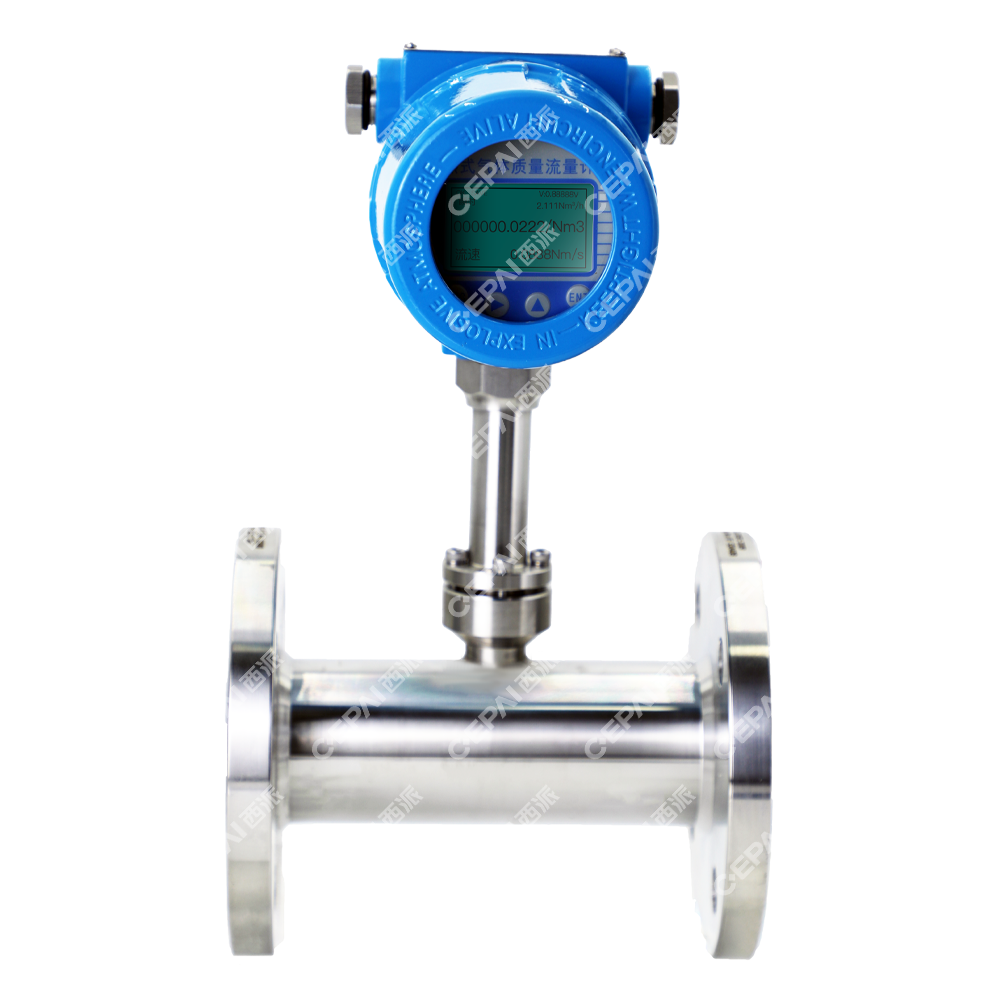

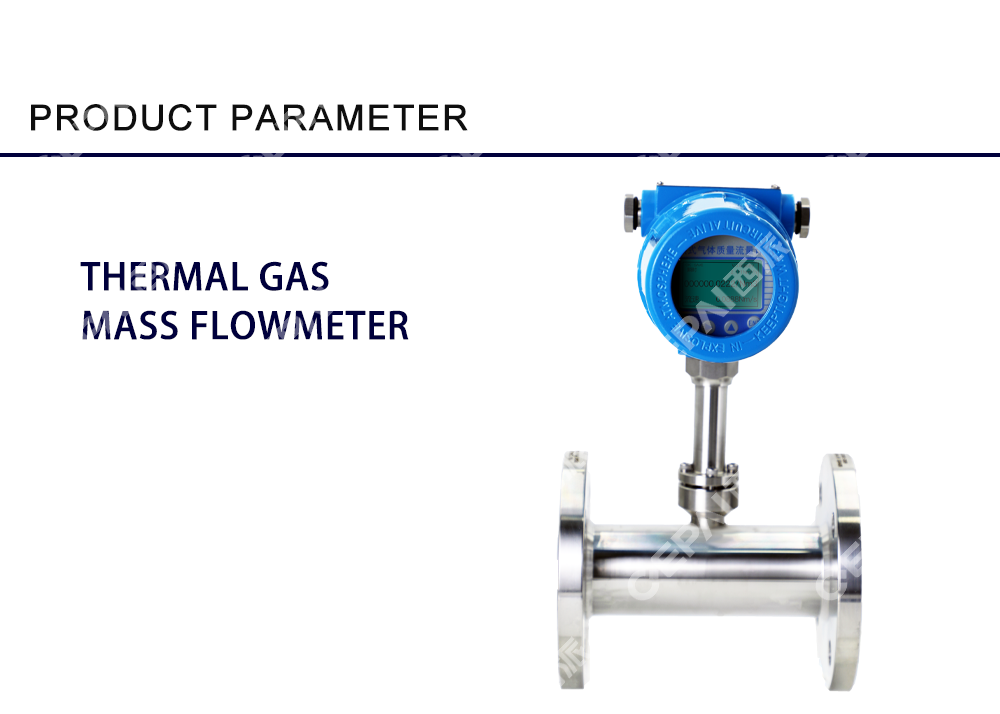

| Product Name | Thermal Gas Mass Flowmeter |
| Measurement Principle | Constant-temperature-difference thermal dispersion |
| Applicable Media | Industrial gases except acetylene; gas-specific calibration and material compatibility must be confirmed |
| Configuration | Inline flanged type or insertion type; integral or remote converter |
| Pipe Diameter Range | Inline type: DN15-DN300; insertion type: DN15-DN2000 |
| Gas Velocity Range | 0.1-100 Nm/s |
| Accuracy | Inline flanged type: ±1.5%; insertion type: ±2.5% |
| Response Time | 1 s |
| Working Pressure | Inline type: up to 2.5 MPa; insertion type: up to 4.0 MPa, subject to selected assembly and installation method |
| Sensor Temperature | Standard version: -10 to +200 °C; high-temperature version: -10 to +350 °C |
| Converter Temperature | -20 to +45 °C |
| Power Supply | Integral: 24 VDC or 220 VAC, approximately 18 W; remote type: 220 VAC, approximately 19 W |
| Output Signal | Optically isolated 4-20 mA, maximum load 500 Ω; optically isolated RS485; HART; optional pulse and relay alarm outputs |
| Cable Entry | M20 × 1.5 or 1/2 NPT |
| Primary Instrument Protection | IP67 stated in the product manual; confirm enclosure rating for the selected converter and certification |
| Process Pipe Compatibility | Carbon steel, stainless steel, plastic and other suitable pipeline materials |
| Part/Option | Available Material / Configuration |
| Sensor Material | Stainless steel |
| Process Connection | Flanged inline spool or insertion assembly with welded mounting base and isolation ball valve |
| Construction | Integral or remote converter; inline or insertion sensor |
| Temperature Version | Standard-temperature or high-temperature sensor |
| Power Supply | 24 VDC or 220 VAC according to converter arrangement |
| Communication | RS485, HART and configurable device address/baud-rate settings |
| Analog / Digital Output | 4-20 mA, pulse/frequency output and optional dual relay alarm contacts |
| Display | Multi-line LCD for instantaneous flow, totalized flow, gas temperature, velocity and operating information |
| Insertion Length | Selected according to the actual pipe internal diameter and installation depth |
| Gas Calibration | Calibration or conversion coefficient selected for the specified gas composition and operating requirements |
| Field | Recommended Content |
| Selling Units | Piece / Pieces |
| Recommended Package Type | Protective carton and/or export wooden case according to meter size and shipment method |
| Documentation | Product manual, inspection documents and ordered certificates, subject to contract |
| Delivery Method | Ocean, land, air, express or other agreed method |
